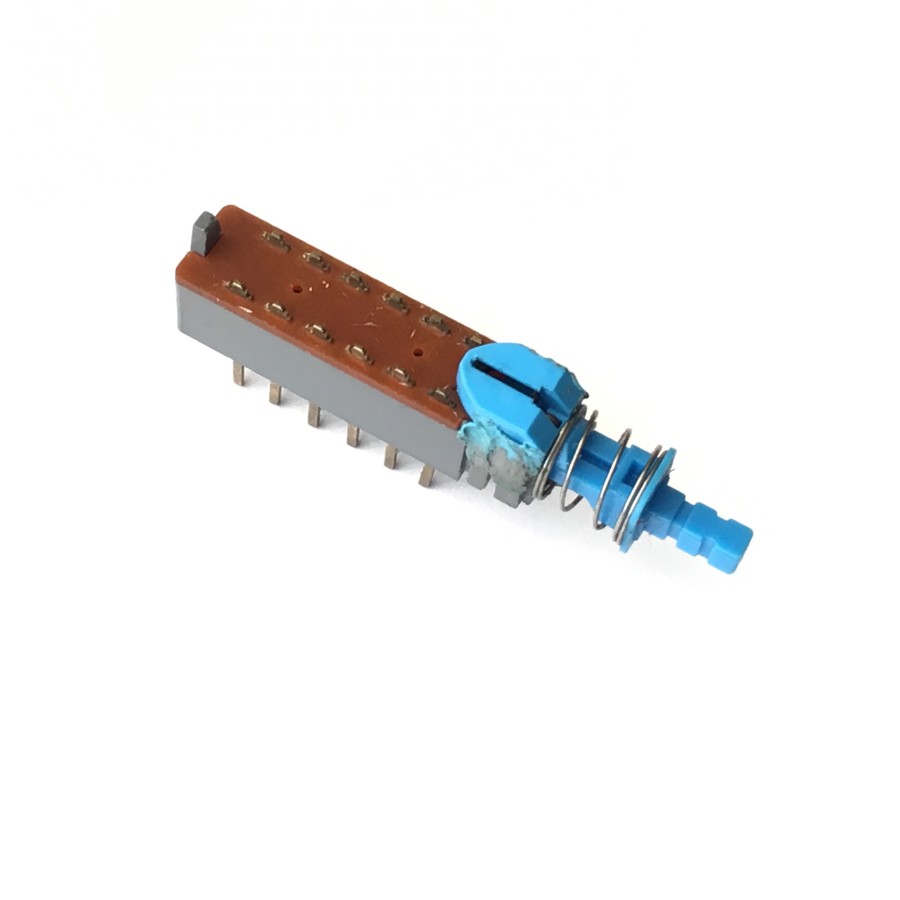

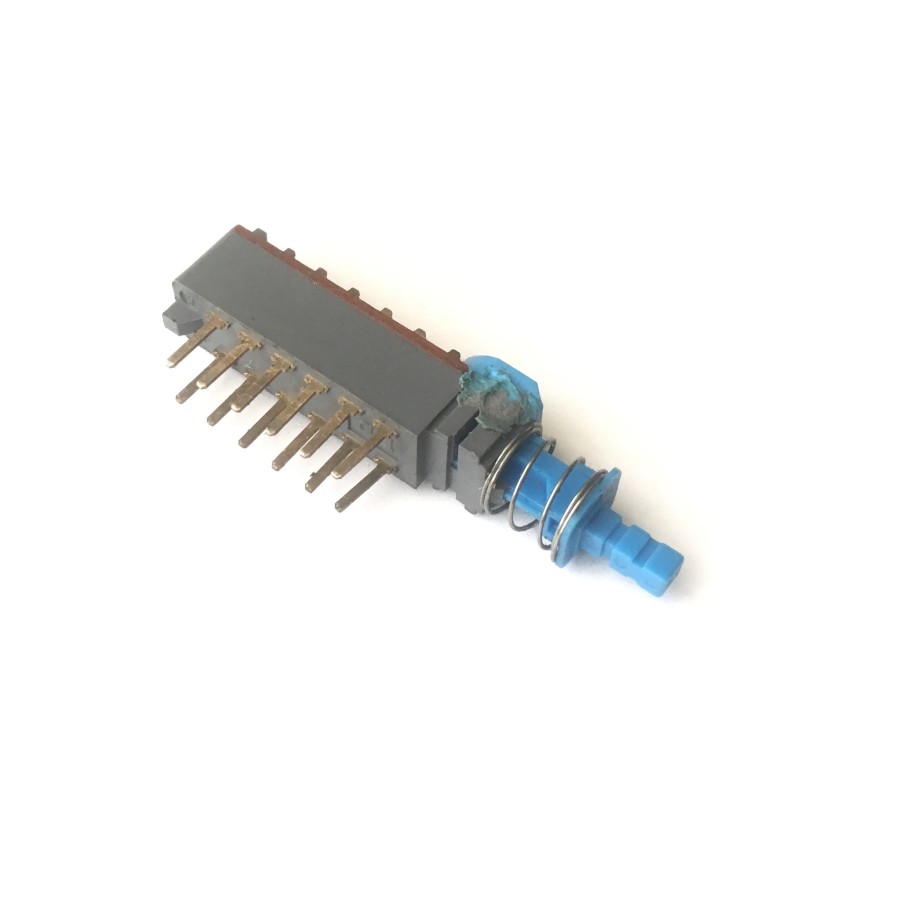

کلید فشاری 12 پین PC Mount Pushbutton Switch 12-Pin

Mechanical life: 30,000 cycles min
Electrical life: 10,000 cycles min
Contact Rating: 0.1Amps @30 VDC
Insulation Resistance: >100MΩ DC250V
Withstand Voltage: AC250V 1 minute
Contact Resistance: <100mΩ
Ambient Humidity: <85%RH
Operating Temper.: -20°C to 70°C
Operating Force: 2 Pole:230±50gf; 4 Pole:280±50gf; 6 Pole:380±50gf
