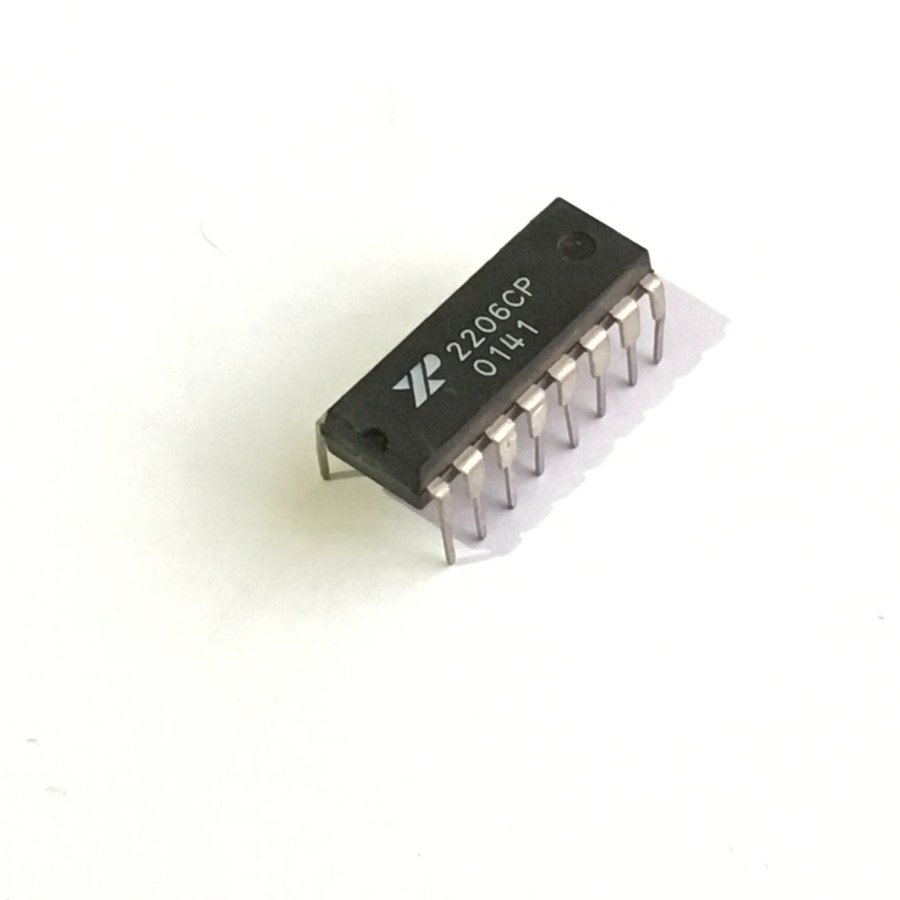

XR2206CP

MONOLITHIC FUNCTION GENERATOR Monolithic
Function Generator;Wavefrom Generation, Power Supply 26V/ 750mW,Am,Fm or Fsk Generation
GENERAL DESCRIPTION
The XR-2206 is a monolithic function generator integrated circuit capable of producing high quality sine,
square, triangle, ramp, and pulse waveforms of high-stability and accuracy. The output waveforms can be
both amplitude and frequency modulated by an external voltage. Frequency of operation can be selected
externally over a range of 0.01Hz to more than 1MHz. The circuit is ideally suited for communications,
instrumentation, and function generator applications requiring sinusoidal tone, AM, FM, or FSK generation. It
has a typical drift specification of 20ppm/°C. The oscillator frequency can be linearly swept over a 2000:1 frequency range with an external control voltage, while maintaining low distortion.
