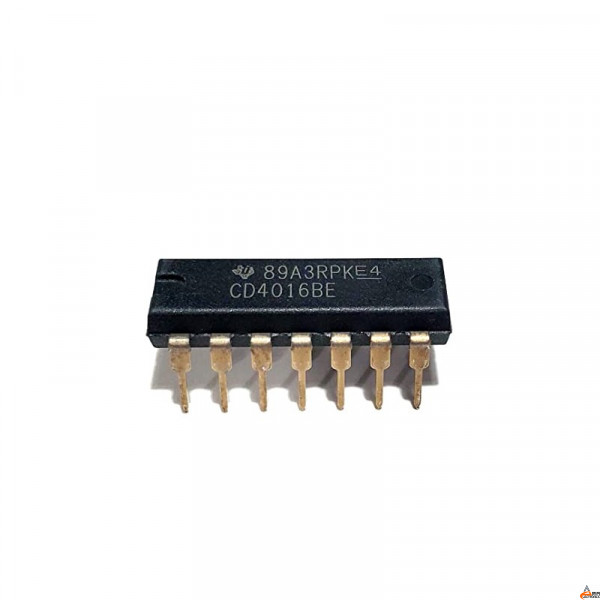

CD4016BE

Quad SPST Analog Switch-CMOS

• Configuration: 4 x SPST
• On Resistance - Max: 850 Ohms
• Switch Voltage - Max: 15 V
• On Time - Max: 30 ns
• Operating Supply Voltage: 3 V to 18 V
• Maximum Operating Temperature: + 125 C
• Mounting Style: Through Hole
• Package/Case: PDIP-14
• Brand: Texas Instruments
• Dual Supply Voltage: +/- 10 V
• Height: 3.3 mm
• Length: 19.05 mm
• Minimum Operating Temperature: - 55 C
• Packaging: Tube
• Pd - Power Dissipation: 500 mW
• Series: CD4016B , HEF4016B , HCF4016B , TC4016B

• Factory Pack Quantity: 25
• Supply Current - Max: 5 uA
• Supply Type: Single Supply, Dual Supply
• Supply Voltage - Max: 18 V
• Supply Voltage - Min: 3 V
• Width: 6.35 mm
• Unit Weight: 1 g

دریافت دیتاشیت محصول: Datasheet
