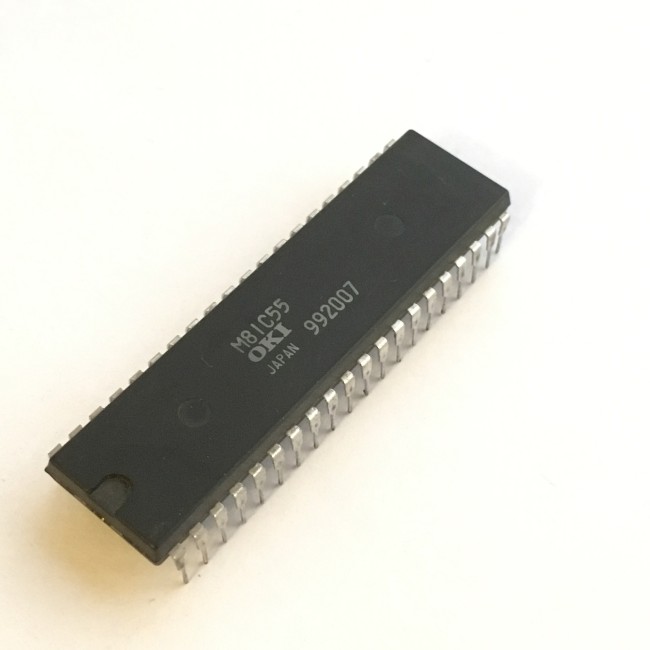

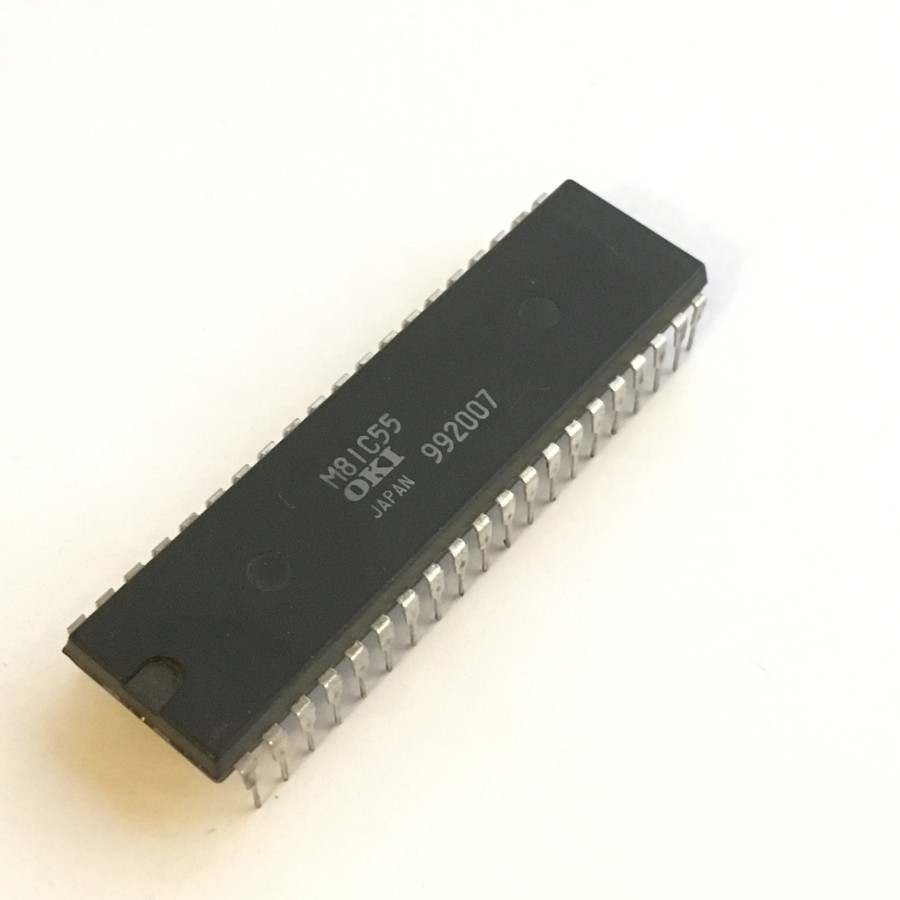

M81C55

 FEATURES
• High speed and low power achieved with silicon gate CMOS technology
• 256 words x 8bits RAM
• Single power supply, 3 to 6 V
• Completely static operation
• On-chip address latch
• 8-bit programmable I/O ports (port A and B)
• TTL Compatible
• RAM data hold characteristic at 2 V
• 6-bit programmable I/O port (port C)
• 14-bit programmable binary counter/timer
• Multiplexed address/data bus
• Direct interface with MSM80C85AH
• 40-pin Plastic DIP (DIP40-P-600-2.54): (Product name: MSM81C55-5RS)
• 44-pin Plastic QFJ (QFJ44-P-S650-1.27): (Product name: MSM81C55-5JS)
• 44-pin Plastic QFP (QFP44-P-910-0.80-2K): (Product name: MSM81C55-5GS-2K)

دریافت دیتاشیت محصول: Datasheet
