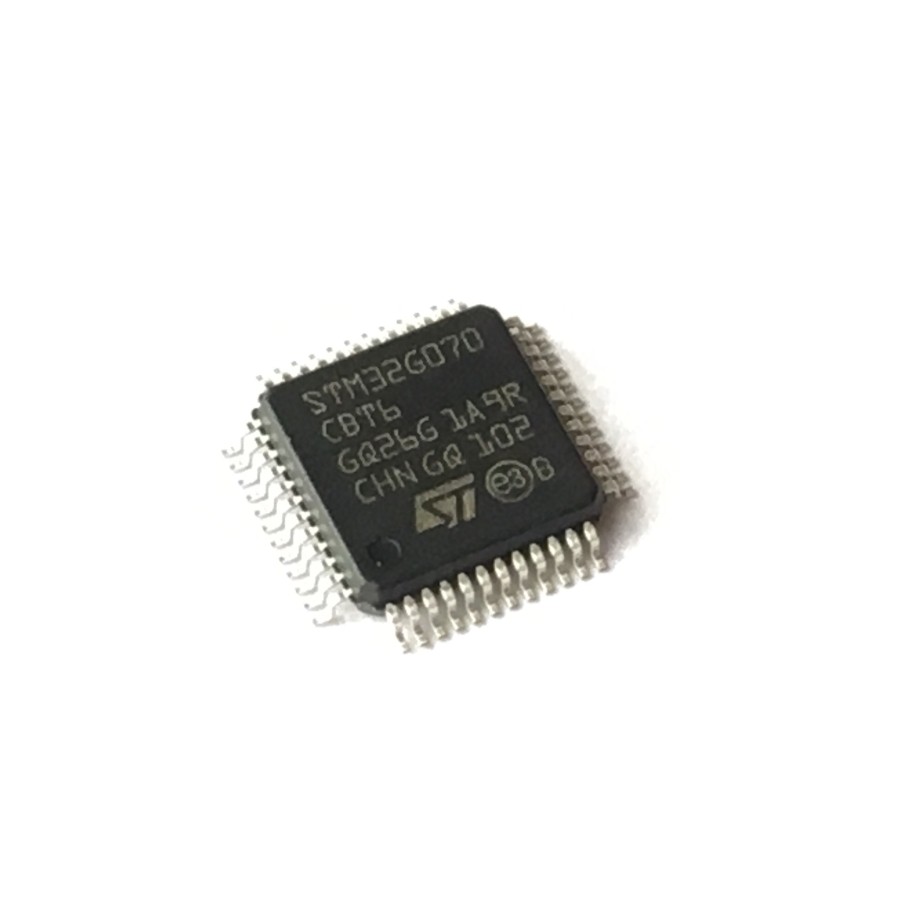

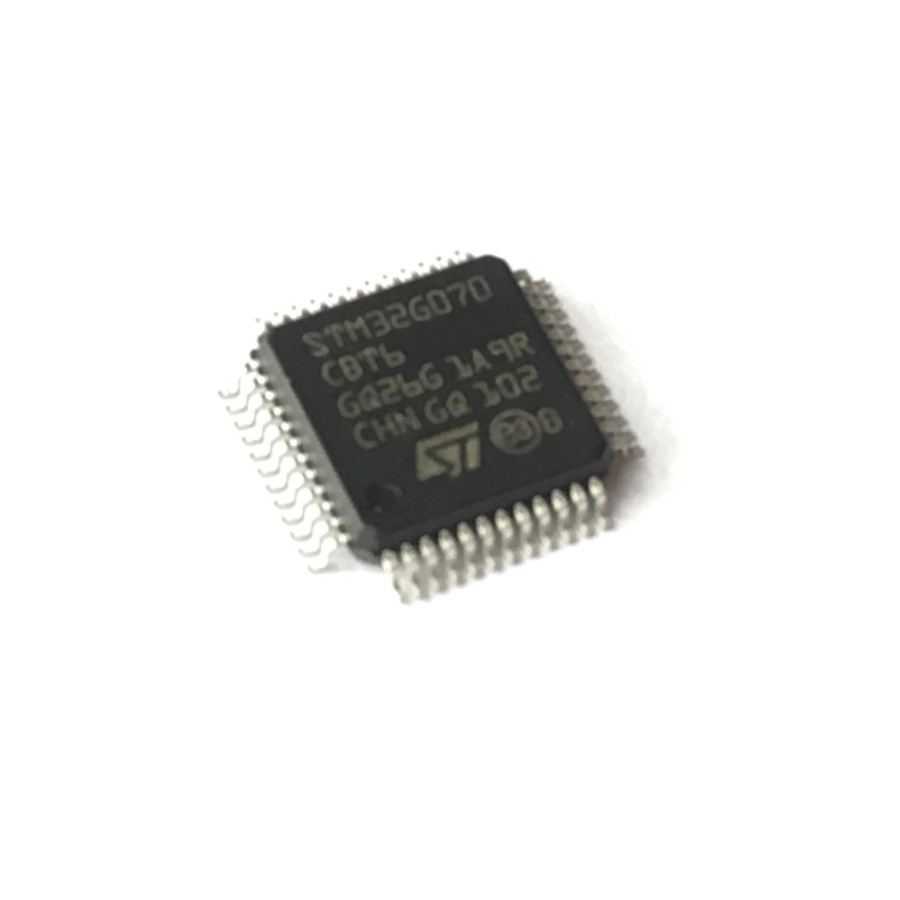

STM32G070CBT6

STM32G070CBT6

Mainstream Value line, Arm Cortex-M0+ MCU with 128 Kbytes of Flash memory, 36 Kbytes RAM, 64 MHz CPU, 4x USART, timers, ADC, comm. I/F, 2-3.6V
80,000 تومان



دیتاشیت محصول: Datasheet

 Description

The STM32G070CB/KB/RB mainstream microcontrollers are based on high-performance
Arm® Cortex®-M0+ 32-bit RISC core operating at up to 64 MHz frequency. Offering a high
level of integration, they are suitable for a wide range of applications in consumer, industrial
and appliance domains and ready for the Internet of Things (IoT) solutions.
The devices incorporate a memory protection unit (MPU), high-speed embedded memories
(128 Kbytes of Flash program memory with read protection, write protection, and 36 Kbytes
of SRAM), DMA and an extensive range of system functions, enhanced I/Os and
peripherals. The devices offer standard communication interfaces (two I2Cs, two SPIs / one
I
2S, and four USARTs), one 12-bit ADC (2.5 MSps) with up to 19 channels, a low-power
RTC, an advanced control PWM timer, five general-purpose 16-bit timers, two basic timers,
two watchdog timers, and a SysTick timer.
The devices operate within ambient temperatures from -40 to 85°C. They can operate with
supply voltages from 2.0 V to 3.6 V. Optimized dynamic consumption combined with a
comprehensive set of power-saving modes allows the design of low-power applications.
VBAT direct battery input allows keeping RTC and backup registers powered.
The devices come in packages with 32 to 64 pins.
