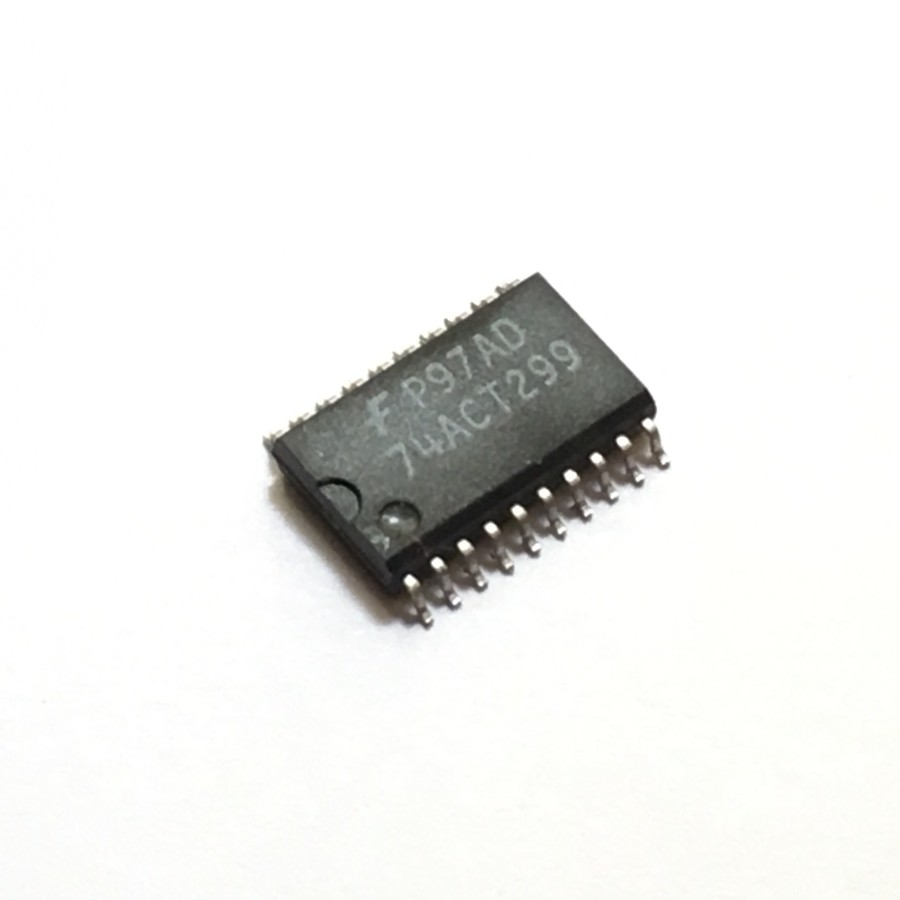

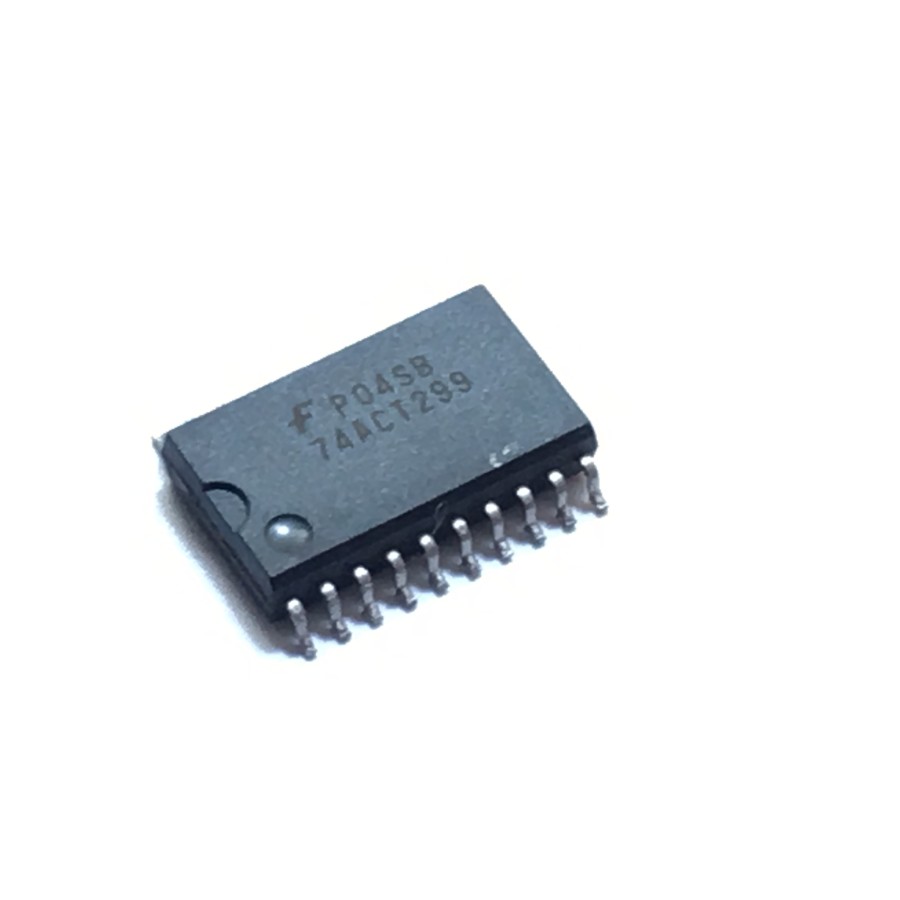

74ACT299
General Description
The ’AC/’ACT299 is an 8-bit universal shift/storage register
with TRI-STATEÉ outputs. Four modes of operation are
possible: hold (store), shift left, shift right and load data. ( دمونتاژ شده )
The ’AC/’ACT299 is an 8-bit universal shift/storage register
with TRI-STATEÉ outputs. Four modes of operation are
possible: hold (store), shift left, shift right and load data. ( دمونتاژ شده )
- کدکالا:
General Description
The ’AC/’ACT299 is an 8-bit universal shift/storage register
with TRI-STATEÉ outputs. Four modes of operation are
possible: hold (store), shift left, shift right and load data. The
parallel load inputs and flip-flop outputs are multiplexed to
reduce the total number of package pins. Additional outputs
are provided for flip-flops Q0, Q7 to allow easy serial cascading. A separate active LOW Master Reset is used to
reset the register.
