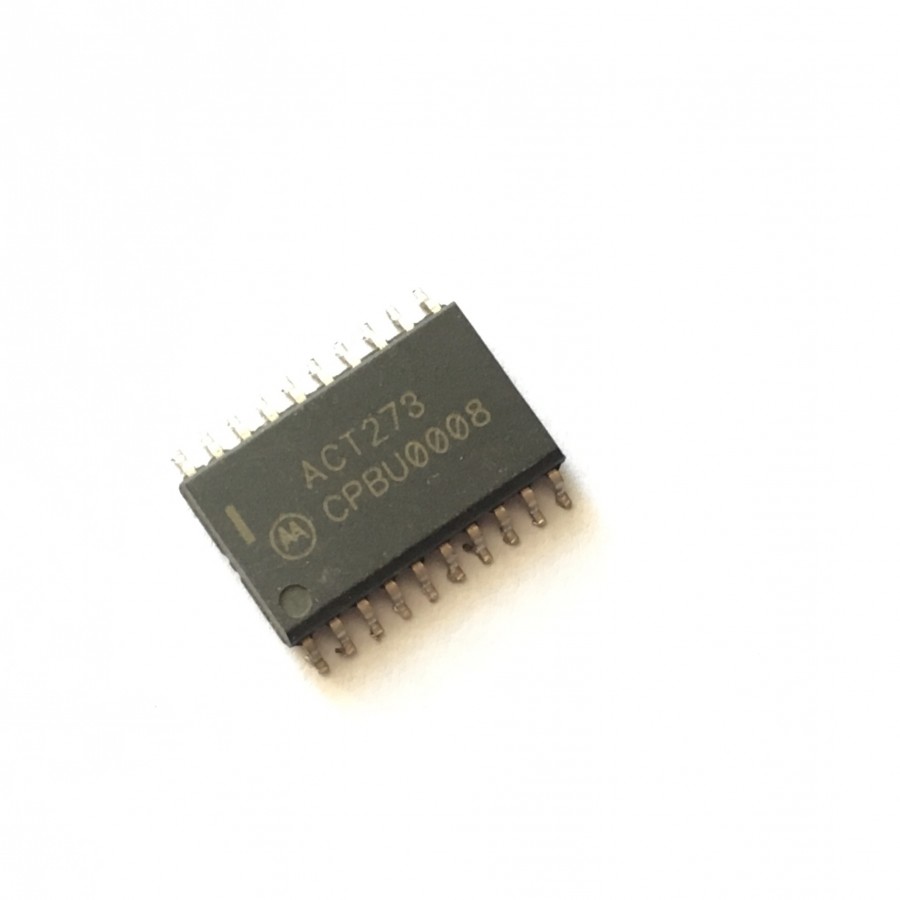

ACT273
The AC273 and ACT273 have eight edge-triggered D-type
flip-flops with individual D-type inputs and Q outputs. The
common buffered Clock (CP) and Master Reset (MR) input
load and reset (clear) all flip-flops simultaneously.( دمونتاژ شده )
flip-flops with individual D-type inputs and Q outputs. The
common buffered Clock (CP) and Master Reset (MR) input
load and reset (clear) all flip-flops simultaneously.( دمونتاژ شده )
- کدکالا:
General Description .
The AC273 and ACT273 have eight edge-triggered D-type
flip-flops with individual D-type inputs and Q outputs. The
common buffered Clock (CP) and Master Reset (MR) input
load and reset (clear) all flip-flops simultaneously.
The register is fully edge-triggered. The state of each Dtype input, one setup time before the LOW-to-HIGH clock
transition, is transferred to the corresponding flip-flop’s Q
output
