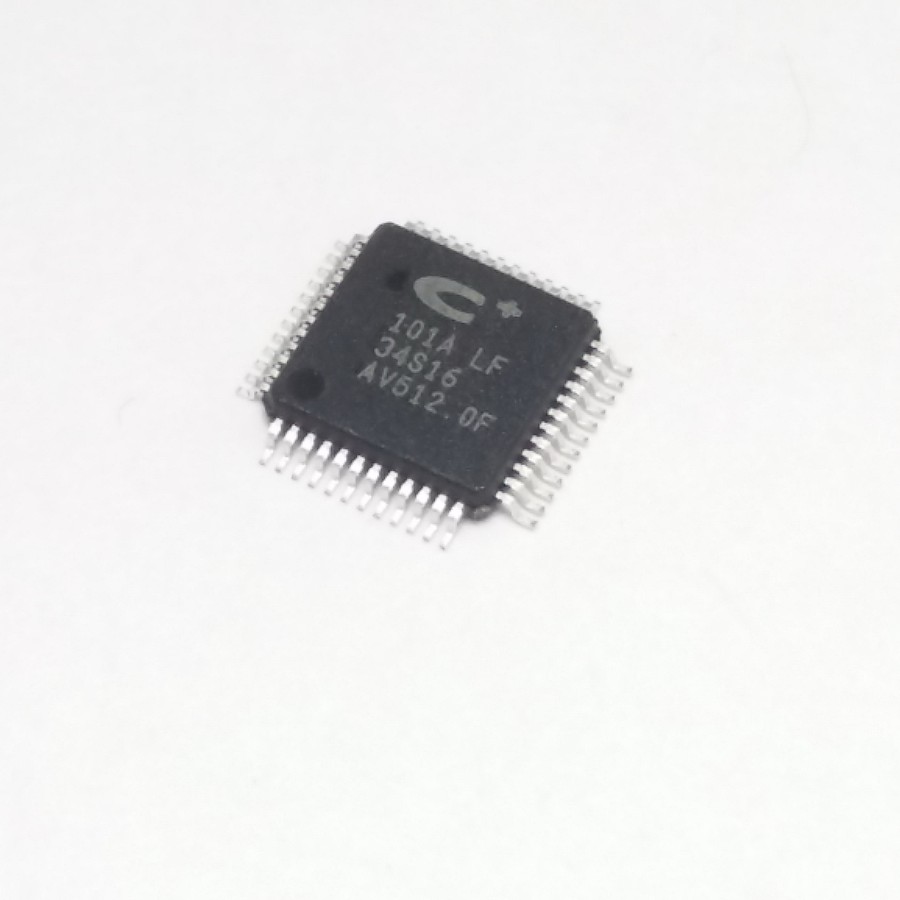

IP101ALF

گیرنده فرستنده تک پورت اترنت 10/100
گیرنده فرستنده لایه فیزیکی اترنت 10/100
Single port 10/100 Fast Ethernet PHY Transceiver

دریافت دیتاشیت محصول: Datasheet

General Description

IP101A LF is an IEEE 802.3/802.3u compliant single-port Fast Ethernet Transceiver for both 100Mbps and 10Mbps operations. It supports Auto MDI/MDIX function to simplify the network installation and reduce the system maintenance cost. To improve the system performance, IP101A LF provides a hardware interrupt pin to indicate the link, speed and duplex status change. IP101A LF also provides Media Independent Interface (MII) / Serial Network Interface (SNI) or Reduced Media Independent Interface (RMII) to connect with different types of 10/100Mbps Media Access Controller (MAC). IP101A LF is designed to use category 5 unshielded twisted-pair cable connecting to other LAN devices.

Features

10/100Mbps TX

Full-duplex or half-duplex

 Supports Auto MDI/MDIX function

 Fully compliant with IEEE 802.3/802.3u

 Supports IEEE 802.3u auto-negotiation

Supports MII / RMII / SNI interface

 IEEE 802.3 full duplex control specification

Supports Automatic Power Saving mode

Supports BaseLine Wander (BLW) compensation

Supports Interrupt function

Supports repeater mode

Single 3.3V power supply with built-in 2.5V regulator

DSP-based PHY Transceiver technology

Using either 25MHz crystal/oscillator or 50MHz oscillator REF_CLK as clock source

Flexible LED display for speed, duplex, link, activity and collision

Supports flow control to communicate with other MAC through MDC and MDIO

0.25u, CMOS technology

48-pin LQFP

Support Lead Free package (Please refer to the Order Information)
